Electrical Data		Mechanical Data
No. Of Circuits	1~8 channels	Outer Diameter	7.9mm
Rated Voltage	0~240 VAC/VDC	Working Speed	0-250rpm
Rated Current	1A/ring	Working Temperature	-20℃~+80℃
Lead Size	Sliver plated Teflon colour coded AWG28(1A)	Working Humidity	60% RH or higher
Lead Length	Standard 250mm (adjustable)	Housing Material	Engineering plastic
Dielectric Strength	500VAC@50HZ,60S	Contact material	Gold to gold
Insulation Resistance	500MΩ/500VDC	IP rating	IP51
Electrical Noise	＜0.01Ω

  Model list

Model	Number of Rings	Rated Current	Rated Voltage	Length (mm)
BSC079-2	2	1A	0~240V	11.8
BSC079-4	4	1A	0~240V	11.8
BSC079-6	6	1A	0~240V	11.8
BSC079-8	8	1A	0~240V	11.8

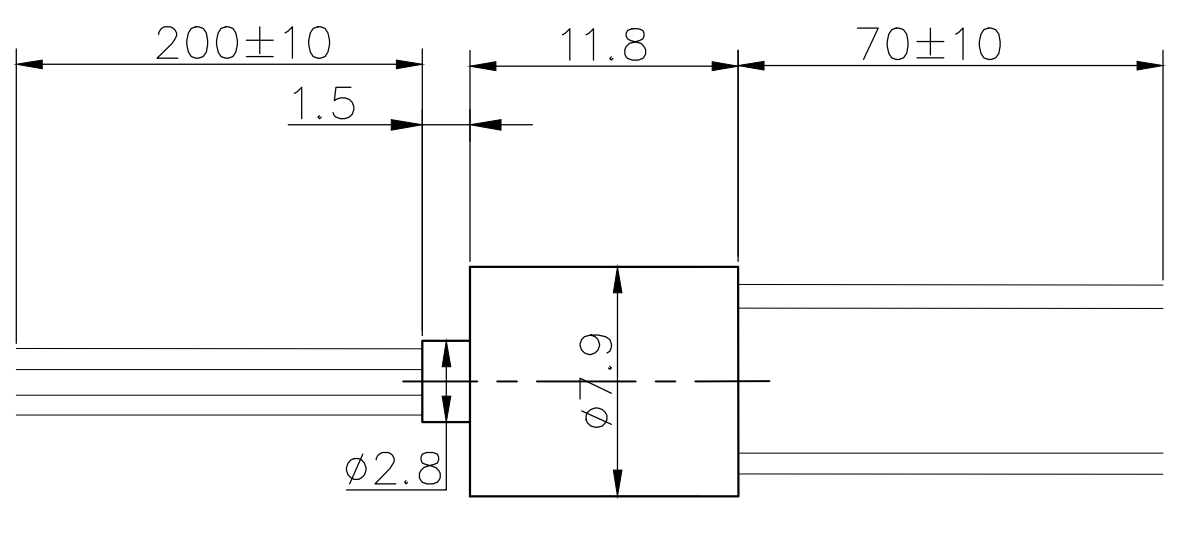

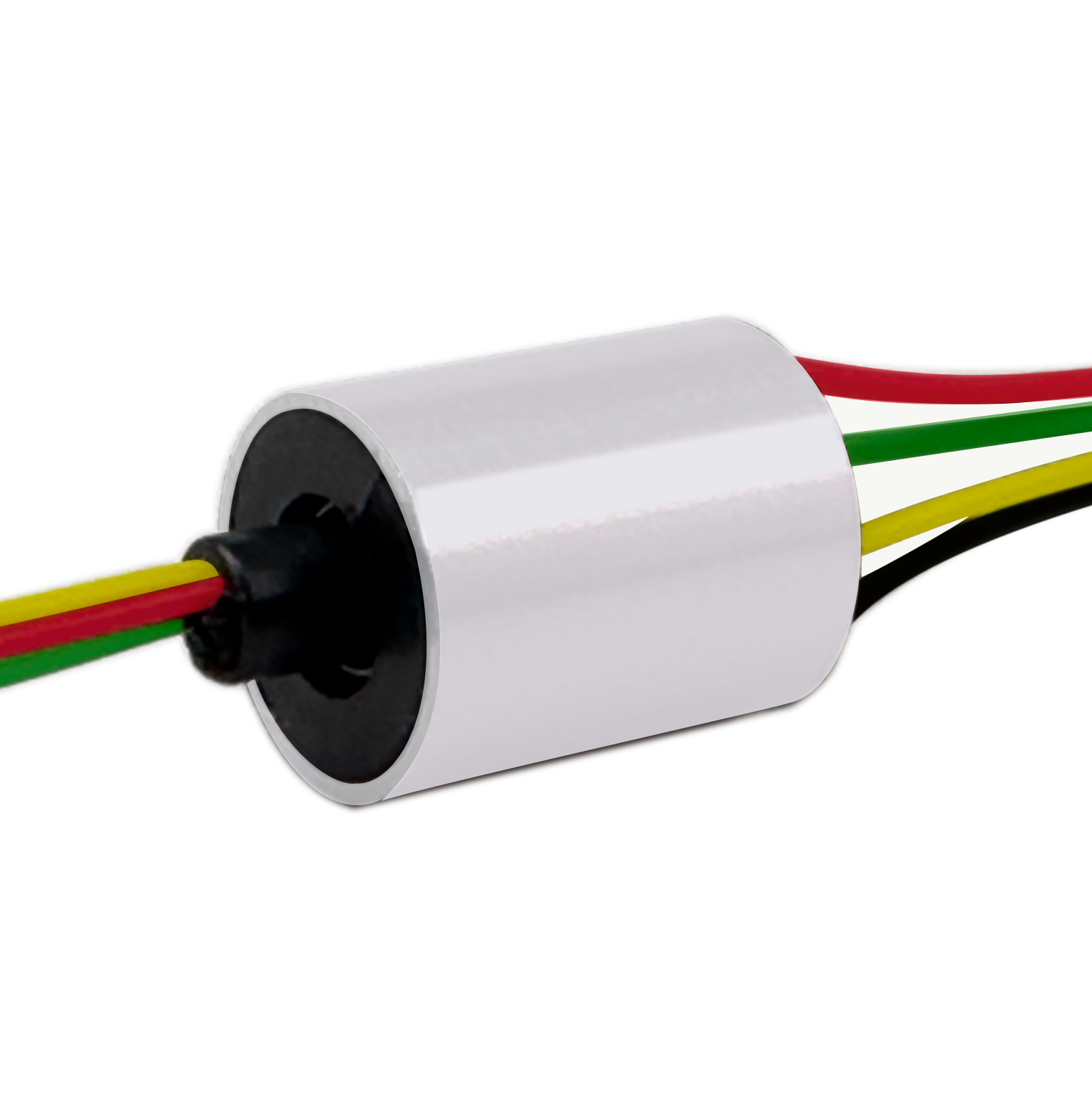

BSC079 is miniature slip ring with OD7.9mm, this mini slip ring allows to transmit 1~8 circuits low controlling signal. It’s compact designed fit for miniature rotating device and easily mounted on hole mechanics, the slip rings adopt gold to gold contact material to ensure high-quality transmission of electrical signals, low friction and wear and low contact resistance, color coded wires on both stator and rotor side.

• Number of rings, support up to 300 rings
• Optional for flange mounting
• Position of wire outlet, wire length
• ID, OD, Height can be customized if structure limitation
• Aviation plug, terminal and heat-shrink tube are optional.
• High temperature can up to 500 degrees.
• High pressure can up to 110KV
• Rotating speed can up to 15,000RPM
• High current up to 5000 amperes.
• Protection level (dust and water)
• Optional for housing or structure material
• Support mixed high speed data transmission(including Ethernet, USB, Profibus, Ethercat, CANOPEN, CANBUS, RS232, RS485, etc.)
• RF/FORJ/Hybrid Pneumatic rotary union/hydraulic rotary union and electric slip ring can be mixed.

• Fishing gear
• Cable reels
• Packaging
• Rotary table
• Wind turbine
• Machine tools
• Capping machines
• Labeling machines
• Automatic machines
• Converting machines
• Exhibit / display equipment
• Medical,Pharmaceutical equipment
• Robotics, rotary sensors, urgent illumination equipment

Rings#	1	2	3	4	5	6	7	8	9	10	11	12
Color	RED	YEL	BLK	BLU	GRN	WHT	PUP	GRY	BRN	ORN	DBLU	KHK

Note: 12 wires for 1 group color, from 13-24, repeat the same color as 1 to 12, or indicated by number code pipe.
