No. Of Ethernet	1~2 channels	Connector	RJ45
Electrical Data		Mechanical Data
No of rings	1~24rings	Inner Diameter	25.4mm
Rated Voltage	0~240 VAC/VDC	Outer Diameter	78mm
Rated Current	5A/ring, 10A/ring	Working Speed	0-250rpm
Lead Size	Sliver plated Teflon colour coded AWG22(5A), AWG16(10A)	Working Temperature	-20℃~+80℃
Lead Length	Standard 500mm (adjustable)	Working Humidity	60% RH or higher
Dielectric Strength	500VAC@50HZ,60S	Housing Material	Engineering plastic
Insulation Resistance	500MΩ/500VDC	Contact material	Precious material
Electrical Noise	＜0.01Ω	IP rating	IP51~IP68

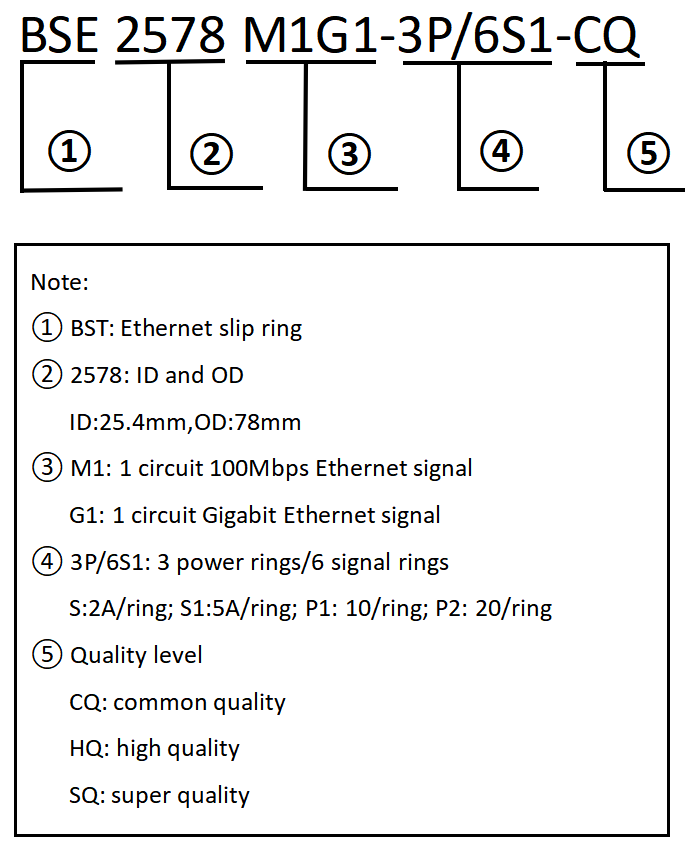

  Model list

Model	Power Ring (10A)	Signal Ring (5A)	100M Ethernet	Gigabit Ethernet	Length (mm)
BSE2578-M1-6P	6	–	1	–	79
BSE2578-M1-7S1	–	7	1	–	79
BSE2578-M2	–	–	2	–	79
BSE2578-G1	–	–	–	1	79
BSE2578-M1-12P	12	–	1	–	103
BSE2578-M1-6P/12S1	6	12	1	–	103
BSE2578-M1-24S1	–	24	1	–	103
BSE2578-M2-6P	6	–	2	–	103
BSE2578-M2-12S1	–	12	2	–	103
BSE2578-G1-6P	6	–	–	1	103
BSE2578-G1-12S1	–	12	–	1	103
BSE2578-M1-18P	18	–	1	–	127
BSE2578-M1-12P/12S1	12	12	1	–	127
BSE2578-M1-6P/24S1	6	24	1	–	127
BSE2578-M1-36S1	–	36	1	–	127
BSE2578-M2-12P	12	–	2	–	127
BSE2578-M2-6P/12S1	6	12	2	–	127
BSE2578-M2-24S1	–	24	2	–	127
BSE2578-G1-12P	12	–	–	1	127
BSE2578-G1-6P/12S1	6	12	–	1	127
BSE2578-G1-24S1	–	24	–	1	127
BSE2578-M1G1-6P	6	–	1	1	127
BSE2578-M1G1-12S1	–	12	1	1	127

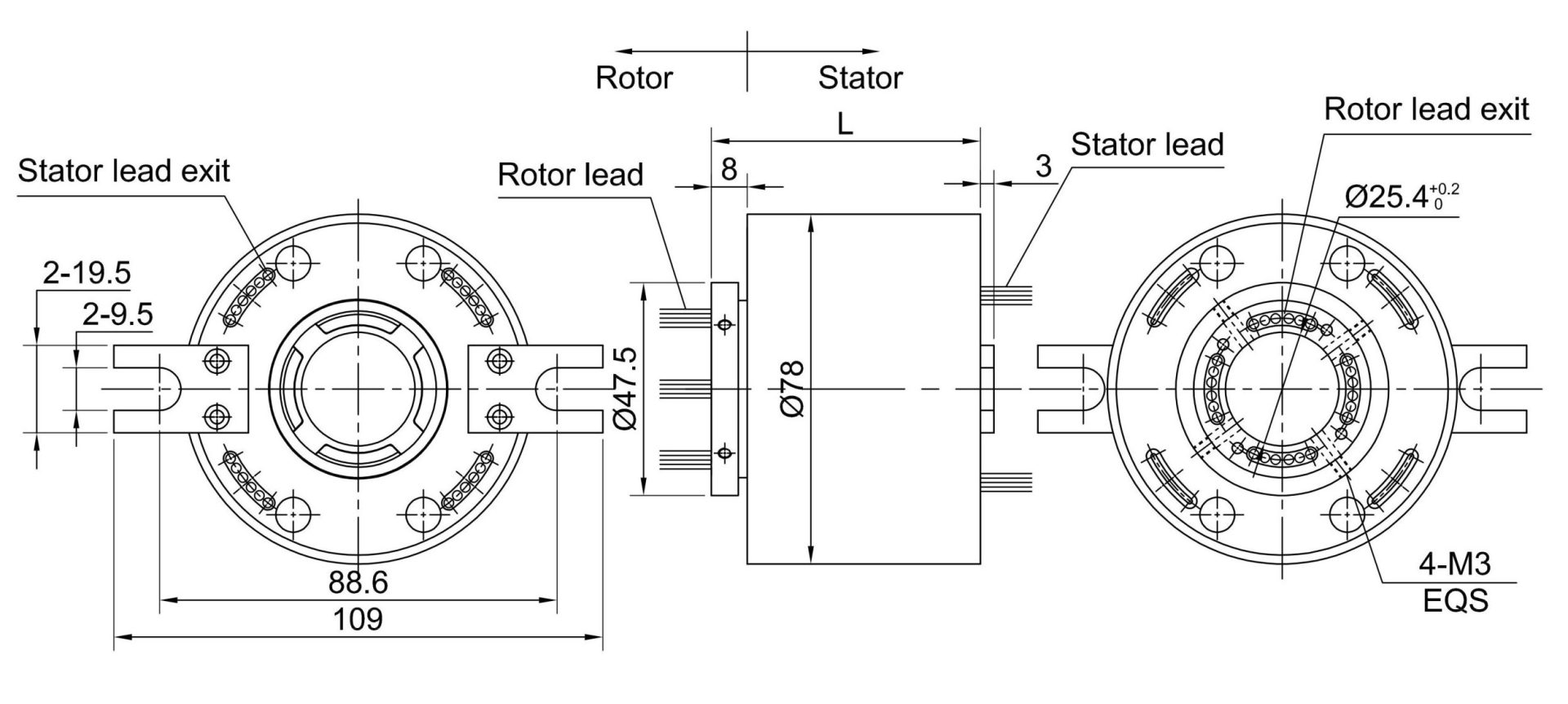

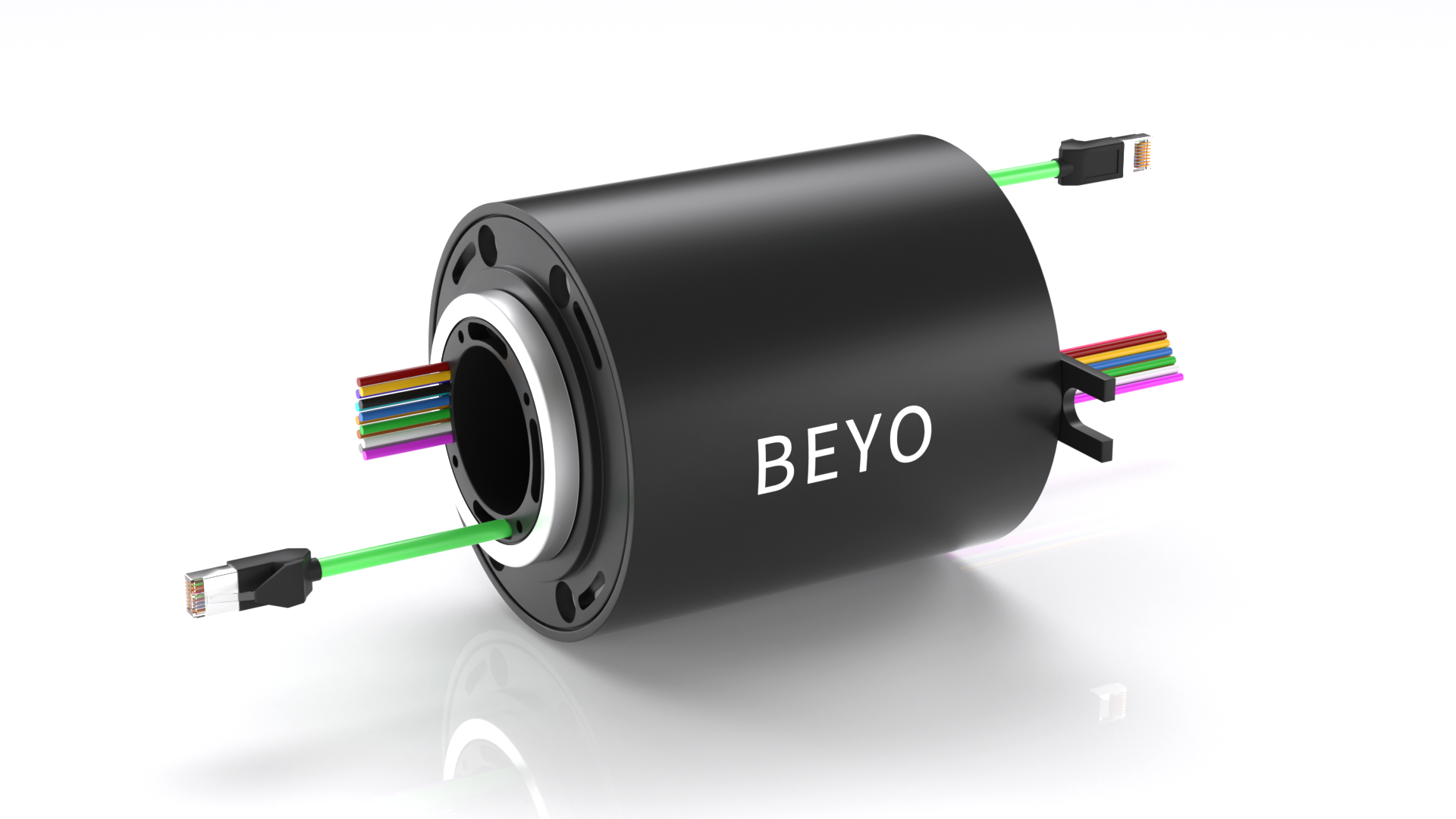

Model BSE2578 is a through bore slip ring which provides 1~2 circuits of 100 Mbps or Gigabit Ethernet signal transmission, BSE2578 Ethernet slip ring with through hole 25.4, OD 78mm, suitable for rotating device which requires OD ≤25.4mm, this model supports 1-12 power rings(0-10A/ring) or 1-24 signal rings(0~5A/ring), combine with 1 channel Gigabit Ethernet signal. BSE2578 series adopt fiber brushes contact material with the advantages of reliable transmitting, no packet loss, low return loss and insertion loss.

Quanlity level	Product level code	Lifespan
Common Quality	CQ	20 million revolutions
High Quality	HQ	50 million revolutions
Super Quality	SQ	80 million revolutions

• Number of rings, support up to 300 rings
• Optional for flange mounting
• Position of wire outlet, wire length
• ID, OD, Height can be customized if structure limitation
• Aviation plug, terminal and heat-shrink tube are optional.
• High temperature can up to 500 degrees.
• High pressure can up to 110KV
• Rotating speed can up to 15,000RPM
• High current up to 5000 amperes.
• Protection level (dust and water)
• Optional for housing or structure material
• Support mixed high speed data transmission(including Ethernet, USB, Profibus, Ethercat, CANOPEN,CANBUS, RS232, RS485, etc.)
• RF/FORJ/Hybrid Pneumatic rotary union/hydraulic rotary union and electric slip ring can be mixed.

• Cable reels
• Packaging
• Rotary table
• Wind turbine
• Machine tools
• Capping machines
• Labeling machines
• Automatic machines
• Converting machines
• Exhibit / display equipment
• Medical,Pharmaceutical equipment
• Robotics, rotary sensors, urgent illumination equipment

Rings#	1	2	3	4	5	6	7	8	9	10	11	12
Color	RED	YEL	BLK	BLU	GRN	WHT	PUP	GRY	BRN	ORN	DBLU	KHK

Note: 12 wires for 1 group color, from 13-24, repeat the same color as 1 to 12, or indicated by number code pipe.
