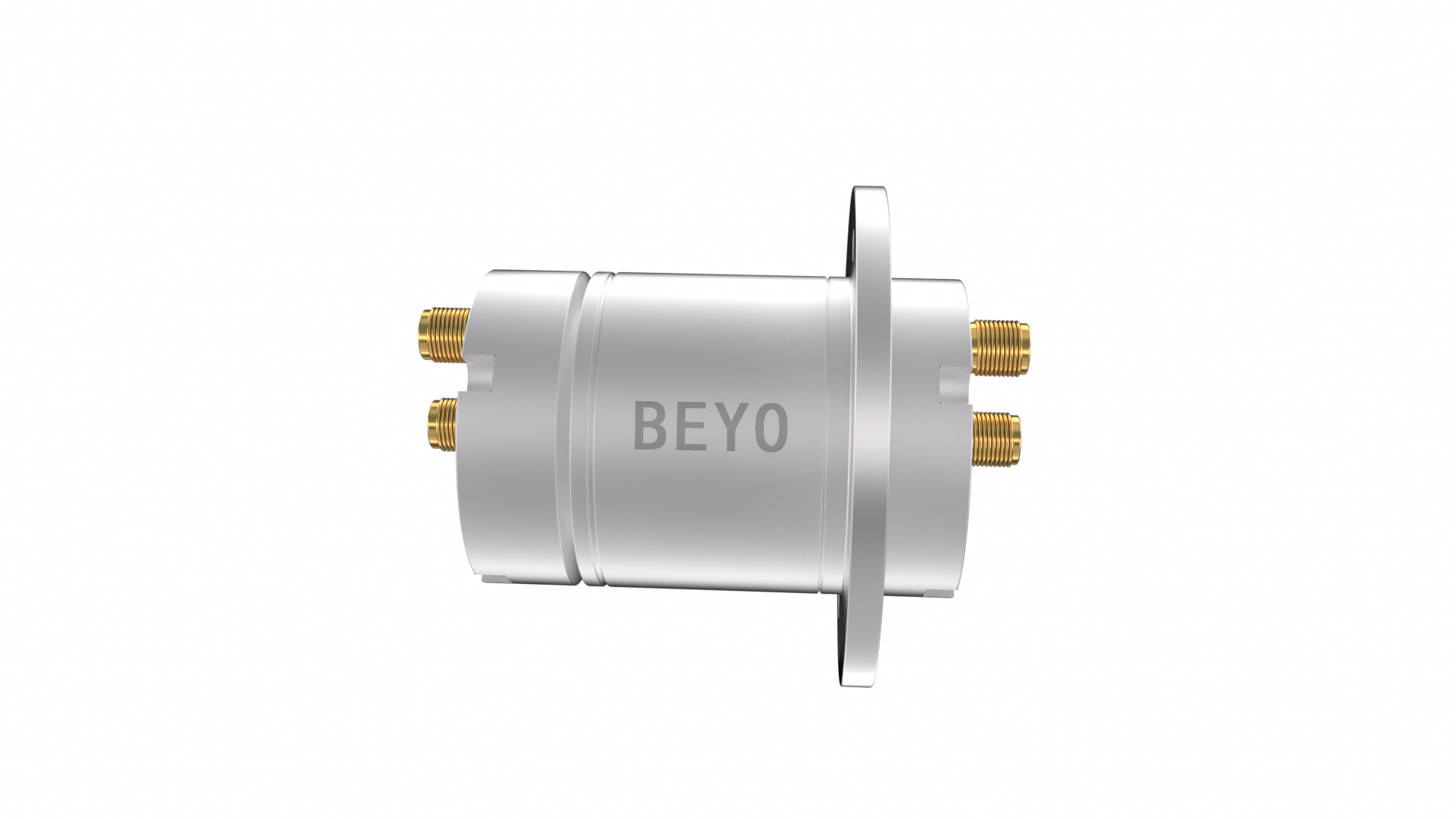

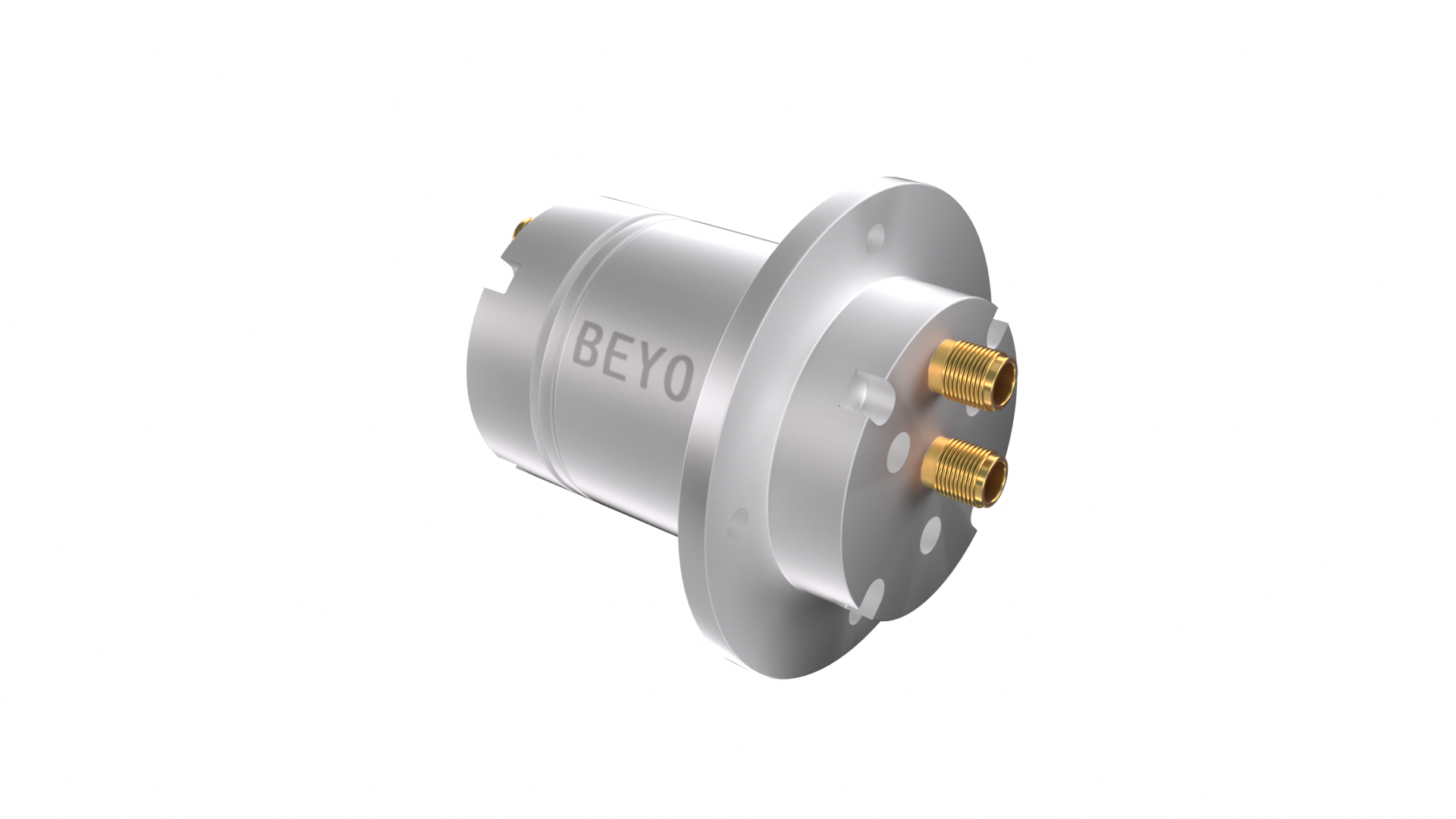

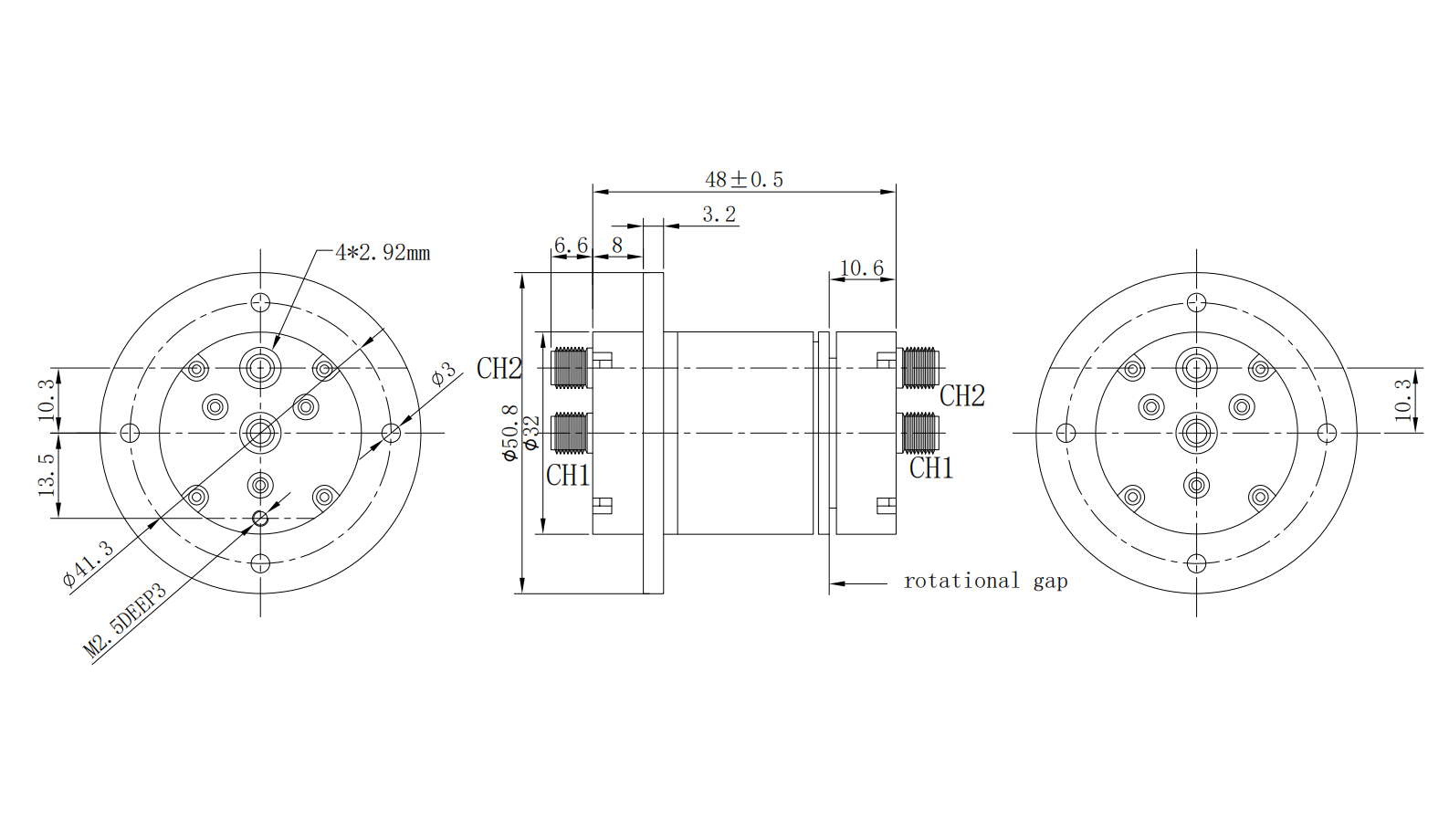

| Model | BRF201-18G | |
| Number of channel | 2 channels | |
| Channel 1 | Channel 2 | |
| Type of connector | 2.92mm-F(50Ω) | 2.92mm-F(50Ω) |
| Frequency range | DC-18GHz | DC-18GHz |
| Peak power,max | 2KW | 2KW |
| Average power,max | 50W@1GHz | 50W@1GHz |
| VSWR,max | 1.35@DC-8GHz | 2@DC-4GHz |
| 1.75@8-18GHz | 3@4-8GHz | |
| 3.5@8-12GHz | ||
| 4.5@12-18GHz | ||
| VSWR, WOW | 0.05 | 0.1@DC-4GHz |
| 0.35@4-8GHz | ||
| 0.8@8-12GHz | ||
| 2.0@12-18GHz | ||
| Insertion loss,max | 0.4dB@DC-8GHz | 0.75dB@DC-4GHz |
| 1.0dB@8-18GHz | 1.5dB@4-8GHz | |
| 2.5dB@8-12GHz | ||
| 3.0dB@12-18GHz | ||
| Insertion loss WOW | 0.05dB | 0.1dB@DC-4GHz |
| 0.3dB@4-8GHz | ||
| 0.75dB@8-12GHz | ||
| 1.5dB@12-18GHz | ||
| Isolation,min | 50dB | 50dB |
| Working speed | 50rpm | |
| Lifetime | 21 million revs | |
| Torque,max | 0.11Nm@normal temperature | |
| Material | Aluminum alloy | |
| Surface treatment | Chromate conversion coat per ML-C-5541 | |
| Working temperature | -400C~+700C | |
| Working humidity | 95% | |
| Storage temperature | -550C~+850C | |
| Storage humidity | 95% | |
| IP level | IP40 | |
| Weight (approximately) | 284g |
